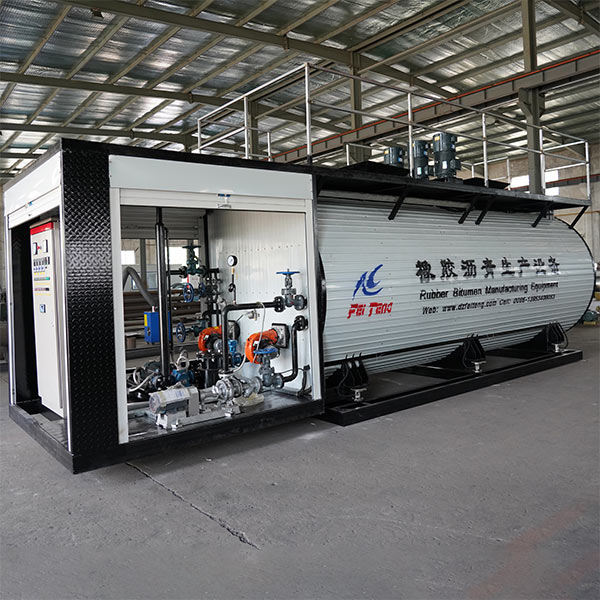

Steel Plate Horizontal Cylinder Rubber Powder Modified Bitumen
Production Machine
Description
XLS rubber and modified bitumen machine designed by our company is
a self-heating multifunctional bitumen batch production equipment.
This equipment is suitable for the preparation, production,
development and storage of various rubber powder modified bitumen
and SBS modified bitumen without thermal oil boiler on site.
Modified bitumen machine (with self heating) components
Mainly including tank (including insulation layer), heating system,
bitumen temperature automatic control system, rubber powder feeding
system, matrix bitumen injection port, finished pumping system,
weighing and measuring system, agitating system, electrical control
system, control room and so on.
Modified bitumen machine main function
The modified bitumen machine itself has strong heating capacity and
strong agitating ability. Equipped with the rubber powder spiral
feeding machine, it is convenient for rubber powder feeding. The
modified bitumen machine has the liquid material feeding function.
The modified bitumen machine has the weighing measurement function,
which can easily grasp the proportion of ingredients. The modified
bitumen machine has the function of pumping out the finished
product. The modified bitumen machine can meet the production
preparation and storage requirements of rubber powder modified
asphalt and SBS modified asphalt in the case of no thermal oil
boiler on site.
Modified bitumen machine main features
1. Heating system
The modified bitumen machine uses 2 burners as the heating source,
the tank body has a built-in flame combustion chamber surrounded by
a thermal oil jacket layer, and multirow of flue and the thermal
oil coils are in the tank. The hot exhaust coming from diesel
burning heat the bitumen through the multirow flue, the thermal oil
is heated by the flame in the jacket layer, then it is pumped and
passed through the thermal oil coil to heat the bitumen, so the two
methods including the high temperature flue and the hot thermal oil
coil heat the bitumen at the same time.
2. Automatic temperature control system
The start-up and shut of burner is automatically controlled by two
temperature controllers, equipped with the bitumen temperature
sensor and the thermal oil temperature sensor. When the temperature
of the bitumen or thermal oil reaches the upper set limit, the
burner automatically stops, when the temperature of the bitumen and
the thermal oil is lower than the low set limit, the burner is
automatically started.
3. Ingredient weighing system
The modified bitumen machine is equipped with the high-precision
weighing sensor. The modified bitumen machine main parts is on the
weighing sensor. The weight of the currently added material can be
accurately and intuitively displayed on the LCD screen, easy to
master the matching accuracy.
4. Rubber powder feeding system
The modified bitumen machine is equipped with 2 rubber powder screw
feeders and 2 feeding ports. The rubber powder can be conveniently
put into the feeder by hand on the ground.
5. Agitating system
The modified bitumen machine is equipped with 3 sets of high-power
special agitators. This agitator is the latest technology of our
company. The agitating shaft is installed horizontally. The power
shaft is vertical and the stirring motor is installed on the top of
the tank. By setting the frequency conversion control, the agitator
can be started softy, and the rotation speed of the agitator can be
adjusted.
| Model | XLS-20 | XLS-30 |
| Volume | 20m3 | 30m3 |
| Production per batch | 16T | 23T |
| Total power | ≈46KW | ≈59KW |
| Heating method | Double heating | Double heating |
| Temperature control mode | Automatic | Automatic |
| Heating rate | 20 degree per hour | 20 degree per hour |
| Dimensions | L8m * W 2.2m * H2.55m | L12m * W 2.2m * H2.55m |
Our advantages
Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD.,
specializes in designing and manufacturing asphalt equipment,
mainly including asphalt melting equipment for drum/box/bag
packing, asphalt tank, asphalt emulsion equipment and asphalt
sprayer, also we have the big advantages as below,
1. Independent design and professional manufacturer.
2. Production capacity over 200 sets per year.
3. All equipments with compact structure, suitable for container
load.
4. Select premium steel with high quality.
5. Complete production control with detailed record and video.
6. Our factory had passed ISO system authentication, including
ISO9001, ISO 14001, OHSAS18001.
7. We manufacture our standard equipment, also welcome OEM and ODM.
Our service
Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD.,
specializes in designing and manufacturing asphalt equipment, you
may get as below,
1. Design drawing as your requirement
2. Equipment solution as your real condition
3. Quality equipment as your order
4. Quick response as your time
5. Fast delivery as your demand
6. Complete warranty as your expect
Quality product, quick response and cost saving.
Delivery and shipping
1. Production time around 5-15 days per set
2. Suitable for 40 HQ container loading
3. Trade terms EXW, FOB, CFR, CIF
After sale service
1. Warranty one year
2. Online support service and video technical support
3. Free spare parts
4. Field installation, commissioning and training, field
maintenance
