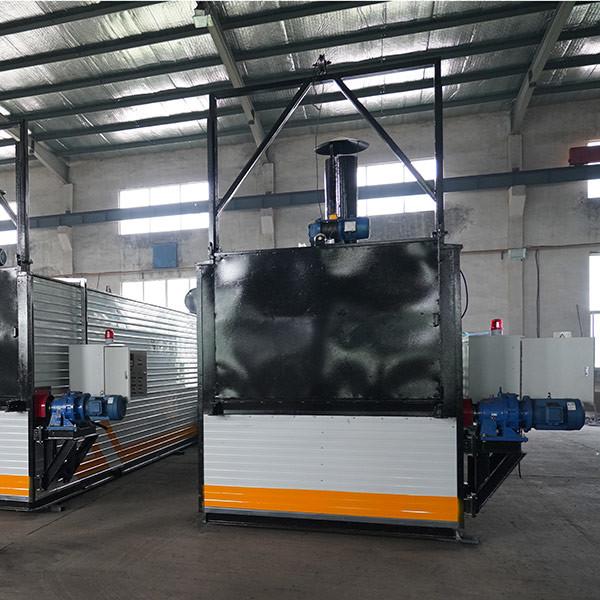

Steel Plate Melting 8 Tons Per Hour Temperature Control Drum
Bitumen Melter
Description
Reliable and efficient design of bitumen melter are ideal for
melting bitumen at sites where bitumen is not available in liquid
form or where bitumen is only available in the form of drums. If
you already have an asphalt plant, and are getting bitumen in
drums, you can use the bitumen melter to melt bitumen. This liquid
bitumen can be transferred to your bitumen tanks in the asphalt
plant is very easy. You can even transfer the liquid bitumen to
bitumen tanks to take away to another site or to bitumen
distributors.
This method is double heating. This method is best because it heats
bitumen efficiently and also prevents ageing of bitumen if in case
you want to reheat bitumen many times.
Bitumen melter main components include,
diesel oil burner
bitumen melting tank
trolley system
heat transfer oil heating system
bitumen pump and pipeline
liquid level warning system
electric control system
Bitumen melter operation process
The trolley will be with uniformly distributed barrel holes, which
facilitates accurate position of each barrel when loading the
barrel(it could be taken apart when loading bag asphalt). The
trolley and the transmission system are responsible for pushing the
heavy drums in and pulling the empty drums out after melting.
With self double heating systems, easy to be transferred, heating
speed fast.
Intermittent production batch by batch.
Features
Easy to use machine.
Easy to assemble and disassemble.
Can be applied and integrated in any system and can be used to fill
any awaiting tank / vehicle.
Main body where heating takes place is fully insulated by rock wool
from all the sides.
Upper part is melting zone and the lower part is for sufficient
storage of liquid bitumen.
Bitumen tanks can be supplied and integrated with the same for
additional storage of bitumen.
Easy to use equipment even with less labour.
Works fine even if the drums are out of shape.
| Model | CYLT-10 |
| Production capacity (t/h) | 8-10 |
| Bitumen tank capacity (m3) | 16 |
| Drum quantity | 44 |
| Number of drum rails | 2 |
| Dimension (L x W x H) (m) | 12×2.25×2.52 |
| Total power (kW) | 17 |
| Diesel oil burner capacity (Kcal/hr) | 800,000 |
Our advantages
Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD.,
specializes in designing and manufacturing asphalt equipment,
mainly including asphalt melting equipment for drum/box/bag
packing, asphalt tank, asphalt emulsion equipment and asphalt
sprayer, also we have the big advantages as below,
1. Independent design and professional manufacturer.
2. Production capacity over 200 sets per year.
3. All equipments with compact structure, suitable for container
load.
4. Select premium steel with high quality.
5. Complete production control with detailed record and video.
6. Our factory had passed ISO system authentication, including
ISO9001, ISO 14001, OHSAS18001.
7. We manufacture our standard equipment, also welcome OEM and ODM.
Our service
Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD.,
specializes in designing and manufacturing asphalt equipment, you
may get as below,
1. Design drawing as your requirement
2. Equipment solution as your real condition
3. Quality equipment as your order
4. Quick response as your time
5. Fast delivery as your demand
6. Complete warranty as your expect
Quality product, quick response and cost saving.
Delivery and shipping
1. Production time around 5-15 days per set
2. Suitable for 40 HQ container loading
3. Trade terms EXW, FOB, CFR, CIF
After sale service
1. Warranty one year
2. Online support service and video technical support
3. Free spare parts
4. Field installation, commissioning and training, field
maintenance
