Cuboid Shape No Liquid Pollution Corrosive Materials Melting Plant
With Compact Design
Description
Drum DMF rectification residue is widely used since it is easy for
transportation and storage. FT series corrosive materials melting
machine is designed for fast melting and decanting the corrosive
materials from the barrel to your application equipment
continuously and smoothly.
Melting plant components

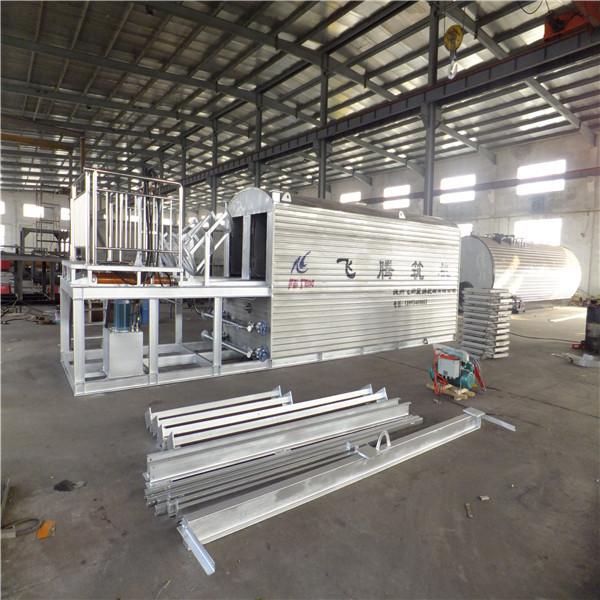

The equipment mainly consists of melting tank, lifting system,
tipping devices, drum plate, dripping liquid collect system,
hydraulic propulsion system, thermal oil heating system, liquid
pump, pipe system, and electric control system.
Working principle
The equipment adopts automatic spring door sealed box structure.
The drum is lifted by electrical hoisting. The hydraulic propeller
pushes drum plate into the melter, and using the hot thermal oil
from external boiler as the heating source.
Continuous production one full drum in and one empty drum out from
the other end.
Features
Easy to use machine.
Easy to assemble and disassemble.
Effortless loading of drums by electric lifting.
Can be applied and integrated in any system and can be used to fill
any awaiting tank / vehicle.
Main body where heating takes place is fully insulated by rock wool
from all the sides.
Upper part is melting zone and the lower part is for sufficient
storage of liquid corrosive material.
Easy to use equipment even with less labour.
Works fine even if the drums are out of shape.
| Model | FT-3 | FT-5 | FT-10 | FT-15 |
| Production capacity (t/h) | 3 | 5 | 10 | 15 |
| Tank capacity (m3) | 8 | 10 | 15 | 20 |
| Drum quantity | 14 | 18 | 28 | 42 |
| Number of drum rails | 2 | 2 | 2 | 3 |
| Dimension (L x W x H) (m) | 7.9×2.2×2.55 | 9.1×2.2×2.55 | 12×2.2×2.55 | 12×2.8×2.55 |
| Total power (kW) | 15 | 15 | 17 | 17 |
| Thermal oil heater capacity (Kcal/hr) | 400,000 | 400,000 | 600,000 | 800,000 |
Our advantages
Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD.,
specializes in designing and manufacturing asphalt equipment,
mainly including asphalt melting equipment for drum/box/bag
packing, asphalt tank, asphalt emulsion equipment and asphalt
sprayer, also we have the big advantages as below,
1. Independent design and professional manufacturer.
2. Production capacity over 200 sets per year.
3. All equipments with compact structure, suitable for container
load.
4. Select premium steel with high quality.
5. Complete production control with detailed record and video.
6. Our factory had passed ISO system authentication, including
ISO9001, ISO 14001, OHSAS18001.
7. We manufacture our standard equipment, also welcome OEM and ODM.
Our service
Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD.,
specializes in designing and manufacturing asphalt equipment, you
may get as below,
1. Design drawing as your requirement
2. Equipment solution as your real condition
3. Quality equipment as your order
4. Quick response as your time
5. Fast delivery as your demand
6. Complete warranty as your expect
Quality product, quick response and cost saving.
Delivery and shipping
1. Production time around 5-15 days per set
2. Suitable for 40 HQ container loading
3. Trade terms EXW, FOB, CFR, CIF
After sale service
1. Warranty one year
2. Online support service and video technical support
3. Free spare parts
4. Field installation, commissioning and training, field
maintenance
