Q235B Steel No Asphalt Pollution Bitumen Melter For Asphalt Mixer Plant

Description

DLT series bitumen melting machine, without self heating system, which consists of melting tank, sliding supporting platform and electrical apparatus control system. The asphalt melting tank is divided into two chambers. The upper one is melting chamber for barrel bitumen, the heating coil exchange heat with asphalt barrel in radiation way to achieve the purpose of asphalt melting. The lower chamber keeps up heating to bitumen to reach the temperature of suction pump(100 degree), then the bitumen pump pumps the bitumen into bitumen storage tank, if increasing the heating time, you can get higher temperature.

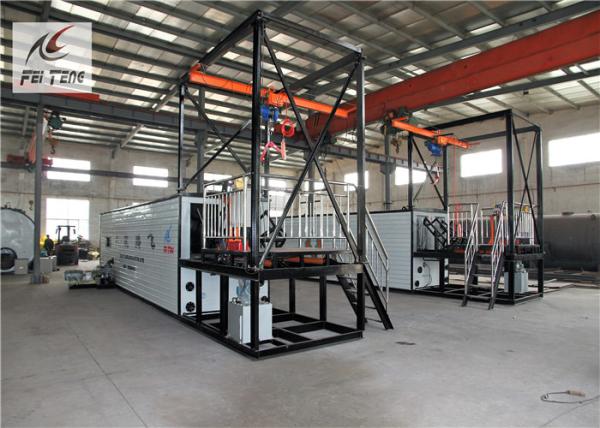

Bitumen drum melter components

The equipment mainly consists of melting tank, lifting system, tipping devices, asphalt drum plate, dripping asphalt collect system, hydraulic propulsion system, thermal oil heating system, bitumen pump, pipe system, and electric control system.

Working principle

The equipment adopts automatic spring door sealed box structure. The drum is lifted by electrical hoisting. The hydraulic propeller pushes drum plate into the melter, and using the hot thermal oil from external boiler as the heating source.

Continuous production one full drum in and one empty drum out from the other end.

Features

1. Drum lifting

Lift the barrel by hoist, move the barrel transversely and put it on the turnover device with opening up. No asphalt dripping, no asphalt pollution.

2. Drum turnover device

In the previous time, after opening the barrel, we need to turn over the barrel by manual and bitumen dripping results in waste and pollution when move the barrel with opening down to the sling way.

But our machine adopt the bitumen barrel turnover technology invented by ourselves, the machine drastically reduces the labor intensity and avoids dripping during transferring.

3. Collecting disk

After the barrel turned over by the turnover device, a few of liquid bitumen dripping from the barrel will be collected by the bottom disk and spilled into the melting tank automatically through a small hole.

4. Bitumen barrel plate

The hydraulic pusher does NOT push the barrel directly, but push the bitumen barrel plate with square shape, avoiding big resistance, unsatisfactory progress and deformation of barrel and rail.

Our advantages

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, mainly including asphalt melting equipment for drum/box/bag packing, asphalt tank, asphalt emulsion equipment and asphalt sprayer, also we have the big advantages as below,

1. Independent design and professional manufacturer.

2. Production capacity over 200 sets per year.

3. All equipments with compact structure, suitable for container load.

4. Select premium steel with high quality.

5. Complete production control with detailed record and video.

6. Our factory had passed ISO system authentication, including ISO9001, ISO 14001, OHSAS18001.

7. We manufacture our standard equipment, also welcome OEM and ODM.

Our service

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, you may get as below,

1. Design drawing as your requirement

2. Equipment solution as your real condition

3. Quality equipment as your order

4. Quick response as your time

5. Fast delivery as your demand

6. Complete warranty as your expect

Quality product, quick response and cost saving.

Delivery and shipping

1. Production time around 5-15 days per set

2. Suitable for 40 HQ container loading

3. Trade terms EXW, FOB, CFR, CIF

After sale service

1. Warranty one year

2. Online support service and video technical support

3. Free spare parts

4. Field installation, commissioning and training, field maintenance

Dezhou Feiteng Road Construction Equipment Co., Ltd., established in 2013, registered capital of 10 million RMB, located in Economic Development Zone of Wucheng County, Dezhou City, Shandong Province, covers an area of 3,670 square meters workshop, has becoming one the professional manufacturer which specializes in producing road construction equipment.

With convenient transportation access, it takes around 5 0 minutes from Dezhou East Railway Station with high speed train to our factory by car, our main product covers five series, such as Bitumen Melting Equipment, Bitumen Tank, Emulsion Bitumen Equipment, Modified Bitumen Plant and Bitumen spreader.

Over the years, our factory pay much attention for the quality control, also we commit to satisfy our customers through our design, testing, manufacturing and quality excellence, improving the production level step by step. With more than 1 0 years international trade experience staff, customers could get very quick action and professional response. As adhering to the core of customer needs, constantly innovating ideas and developing new products, while serving customers at heart, so far we have developed a long term stable trade cooperation with domestic and foreign customers.

In addition, our products have been exporting to clients all along. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking new road device for your application, we are willing to provide our proper solution for your projects.
