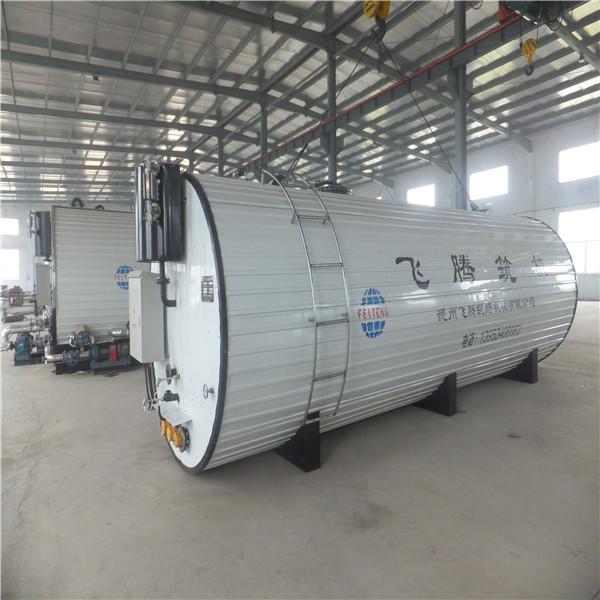

Inner Thermal Oil Coils Heating Asphalt Heating Tank With High
Density Rock Wool Insulation
Descriptions
Asphalt tanks heating source was from electric tubes, which heated
thermal oil through serpentine heating coils, transferring heat to
asphalt stored inside the tank.
They are used at hot mix asphalt plants, asphalt terminals, and
asphalt roofing plants.
Asphalt storage tank components
Electric heating asphalt tank is mainly composed of tank body, rock
wool insulation layer, electric heater, asphalt thermometer,
asphalt temperature sensor, asphalt level gauge, pressure level
sensor, top manhole, asphalt inlet and outlet, ladder guardrails,
electric control box and so on.
Two options
option 1, electric heater heating thermal oil, avoiding asphalt
aging by indirect heating.
option 2, electric heater heating asphalt directly, saving cost
with lower price.
Features
Tank capacities from from 30 to 50 m3 are available.
Fitted with integral heat transfer coils and automatic temperature
control valves.
High degree of fabrication integrity, Q235B steel
Range of heating options available
Thermostatically controlled temperature
Accurate continuous level indication
High density insulation and robust external finish
Independent ultimate high level alarm
Easy to operate and requires minimal maintenance
Ideal for sites with height restrictions
Rapid on site set up times / pre wired and tested
| Model | DZL-10 | DZL-20 | DZL-30 | DZL-35 | YZSL-40 |
| Tank type | Round shaped horizontal tank | Round shaped horizontal tank | Round shaped horizontal tank | Round shaped horizontal tank | Square shaped horizontal tank |
| Electric energy consumption per ton (kg) | ≈50 | ≈50 | ≈50 | ≈50 | ≈50 |
| Capacity (m³) | 10 | 20 | 30 | 35 | 40 |
| Power (kW) | 80 | 80 | 80 | 110 | 110 |
| Size (m) | Φ2.2×5.8 | Φ2.2×8.3 | Φ2.2×10.5 | Φ2.2×12 | 12×2.25×2.55 (L×W×H) |
Our advantages
Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD.,
specializes in designing and manufacturing asphalt equipment,
mainly including asphalt melting equipment for drum/box/bag
packing, asphalt tank, asphalt emulsion equipment and asphalt
sprayer, also we have the big advantages as below,
1. Independent design and professional manufacturer.
2. Production capacity over 200 sets per year.
3. All equipments with compact structure, suitable for container
load.
4. Select premium steel with high quality.
5. Complete production control with detailed record and video.
6. Our factory had passed ISO system authentication, including
ISO9001, ISO 14001, OHSAS18001.
7. We manufacture our standard equipment, also welcome OEM and ODM.
Our service
Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD.,
specializes in designing and manufacturing asphalt equipment, you
may get as below,
1. Design drawing as your requirement
2. Equipment solution as your real condition
3. Quality equipment as your order
4. Quick response as your time
5. Fast delivery as your demand
6. Complete warranty as your expect
Quality product, quick response and cost saving.
Delivery and shipping
1. Production time around 5-15 days per set
2. Suitable for 40 HQ container loading
3. Trade terms EXW, FOB, CFR, CIF
After sale service
1. Warranty one year
2. Online support service and video technical support
3. Free spare parts
4. Field installation, commissioning and training, field
maintenance
