Steel Plate With Self Heating Continuous Production Bitumen Bag
Decanter For Road Construction
Description

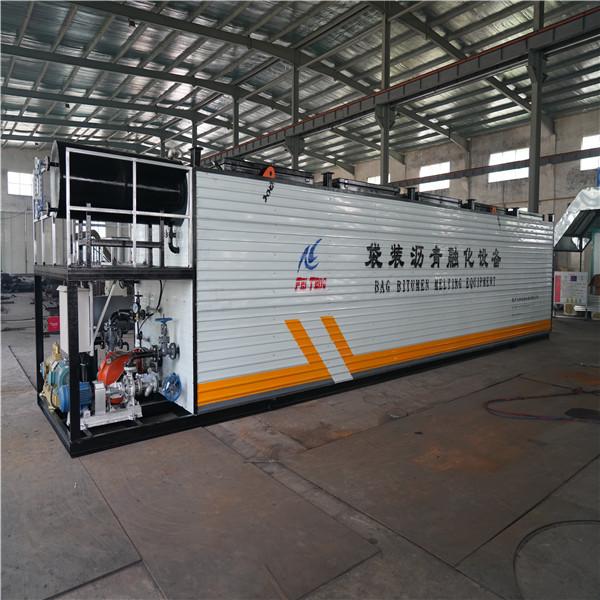

The YDLR-5 bag bitumen melting equipment developed by our company
takes diesel oil burner as heating sources, thermal oil as heating
medium, and the equipment heats the coil to finish the cutting,
heating, melting and continuous heating. And the equipment
guarantees the heating quality and has the features of high heating
efficiency, labor intensity reduction and pollution reduction.
Main components include,
bitumen melting tank
lifting device
diesel oil burner
exhaust flue
heat transfer oil heating system
bitumen pump and pipeline
liquid level warning system
electric control system
Working principle
This equipment is specially designed for the melting and heating of
1 ton bag asphalt. The shape is square tank. The top of the
equipment is equipped with a electric hoist. The bag asphalt is
lifted by the hoist to the feeding port at the top of the
equipment. The bottom bag is cut by knives, then the asphalt block
in the bag will be taken out and dropped into the equipment through
the feeding port to be heated. There are 5 feeding ports, each port
will be with one movable lid for insulation and rain proof.
Features
Easy to use machine.
Easy to assemble and disassemble.
Effortless loading of bags by electric lifting.
Can be applied and integrated in any system and can be used to fill
any awaiting tank / vehicle.
Main body where heating takes place is fully insulated by rock wool
from all the sides.
Upper part is melting zone and the lower part is for sufficient
storage of liquid bitumen.
Bitumen tanks can be supplied and integrated with the same for
additional storage of bitumen.
Easy to use equipment even with less labour.
Works fine even if the bag packing or box packing.
It could be customized as bag size.
| Item | Unit | Parameter | Remark |
| Product rate | t/h | 5 | Air over 25 degree |
| Diesel consumption | kg/asphalt per ton | 6-8 | |
| Asphalt output temperature | degree | >110 | |
| Asphalt storage capacity | m3 | >30 | |
| Thermal oil working temperature | degree | 200-250 | |
| Asphalt pump flow rate | m3/h | 16 | |
| Total power | kw | 15 | |
| Outer size(length*width*height) | m | 11.9×2.2×2.55 | Shipping size |
Our advantages
Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD.,
specializes in designing and manufacturing asphalt equipment,
mainly including asphalt melting equipment for drum/box/bag
packing, asphalt tank, asphalt emulsion equipment and asphalt
sprayer, also we have the big advantages as below,
1. Independent design and professional manufacturer.
2. Production capacity over 200 sets per year.
3. All equipments with compact structure, suitable for container
load.
4. Select premium steel with high quality.
5. Complete production control with detailed record and video.
6. Our factory had passed ISO system authentication, including
ISO9001, ISO 14001, OHSAS18001.
7. We manufacture our standard equipment, also welcome OEM and ODM.
Our service
Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD.,
specializes in designing and manufacturing asphalt equipment, you
may get as below,
1. Design drawing as your requirement
2. Equipment solution as your real condition
3. Quality equipment as your order
4. Quick response as your time
5. Fast delivery as your demand
6. Complete warranty as your expect
Quality product, quick response and cost saving.
Delivery and shipping
1. Production time around 5-15 days per set
2. Suitable for 40 HQ container loading
3. Trade terms EXW, FOB, CFR, CIF
After sale service
1. Warranty one year
2. Online support service and video technical support
3. Free spare parts
4. Field installation, commissioning and training, field
maintenance
