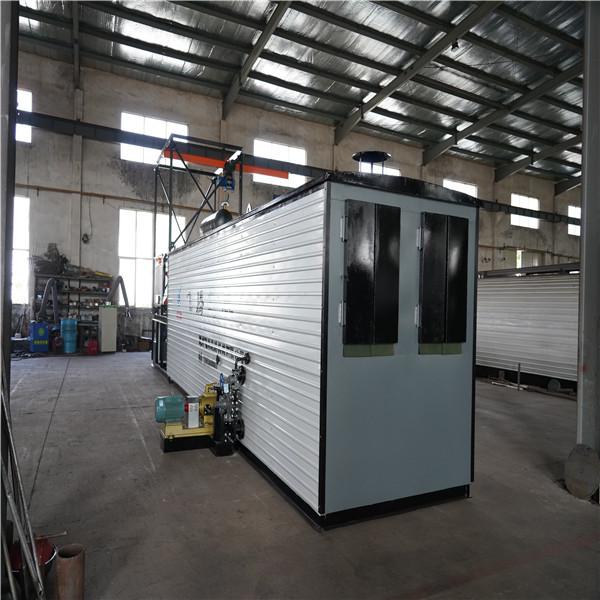

Carbon Steel Flue Heating And Thermal Oil Heating Drummed Asphalt
Melter For Asphalt Mixing Plant
Description
YDST series bitumen melting machine, with self heating system,
which consists of melting tank, diesel oil burner, turnover device
and electrical apparatus control system. The asphalt melting tank
is divided into two chambers. The upper one is melting chamber for
barrel bitumen, the heating coil exchange heat with asphalt barrel
in radiation way to achieve the purpose of asphalt melting. The
lower chamber keeps up heating to bitumen to reach the temperature
of suction pump(100 degree), then the bitumen pump pumps the
bitumen into bitumen storage tank, if increasing the heating time,
you can get higher temperature.
Main components include,
diesel oil burner
bitumen melting tank
lifting device
tipping device
hydraulic propelling system
heat transfer oil heating system
bitumen pump and pipeline
liquid level warning system
electric control system
Operation process
The equipment adopts automatic spring door sealed box structure.
The drum is lifted by electrical hoisting. The hydraulic propeller
pushes drum plate into the melter, and using the diesel oil burner
as the heating source.
With self double heating systems, easy to be transferred, heating
speed fast.
Continuous production one full drum in and one empty drum out from
the other end.
Features
Easy to use machine.
Easy to assemble and disassemble.
Effortless loading of drums by electric lifting.
Can be applied and integrated in any system and can be used to fill
any awaiting tank / vehicle.
Main body where heating takes place is fully insulated by rock wool
from all the sides.
Upper part is melting zone and the lower part is for sufficient
storage of liquid bitumen.
Bitumen tanks can be supplied and integrated with the same for
additional storage of bitumen.
Easy to use equipment even with less labour.
Works fine even if the drums are out of shape.
| Model | YDST-8 | Remark |
| Production capacity | 8-10 tons per hour | Asphalt soften 55, air over 25 degree |
| Tank volume M3 | 14 | |
| Drum quantity | 28 drums | Drum diameter 500mm |
| Sliding way | 2 lines | |
| Dimension L*W*H | 12×2.2×2.55m | |
| Total power KW | ≈17 | |
| Diesel oil burner Kcal | 600 Kcal | |
Our advantages
Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD.,
specializes in designing and manufacturing asphalt equipment,
mainly including asphalt melting equipment for drum/box/bag
packing, asphalt tank, asphalt emulsion equipment and asphalt
sprayer, also we have the big advantages as below,
1. Independent design and professional manufacturer.
2. Production capacity over 200 sets per year.
3. All equipments with compact structure, suitable for container
load.
4. Select premium steel with high quality.
5. Complete production control with detailed record and video.
6. Our factory had passed ISO system authentication, including
ISO9001, ISO 14001, OHSAS18001.
7. We manufacture our standard equipment, also welcome OEM and ODM.
Our service
Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD.,
specializes in designing and manufacturing asphalt equipment, you
may get as below,
1. Design drawing as your requirement
2. Equipment solution as your real condition
3. Quality equipment as your order
4. Quick response as your time
5. Fast delivery as your demand
6. Complete warranty as your expect
Quality product, quick response and cost saving.
Delivery and shipping
1. Production time around 5-15 days per set
2. Suitable for 40 HQ container loading
3. Trade terms EXW, FOB, CFR, CIF
After sale service
1. Warranty one year
2. Online support service and video technical support
3. Free spare parts
4. Field installation, commissioning and training, field
maintenance
