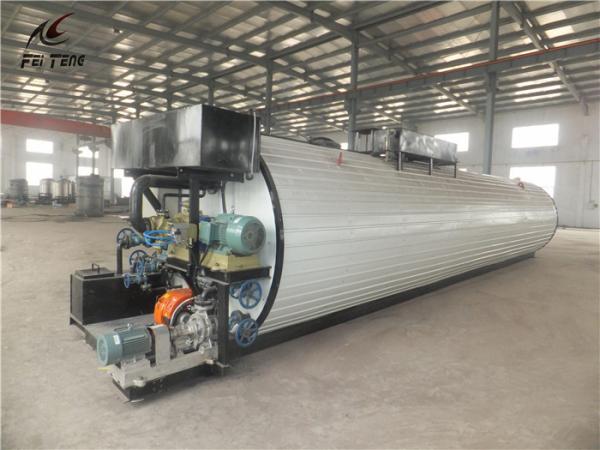

Diesel oil burner heating asphalt tank for asphalt mixing plant

YZSL series fuel automatic double heating bitumen storage tank is an energy saving, environmental protection and high automatic performance product carefully designed by our company in order to meet the increasing requirements of energy saving and environmental protection in our country, and to improve the civilized production level of bitumen storage and heating process, combined with the rich experience accumulated in the field of asphalt heating over the years. This equipment is combined the bitumen tank and heat thermal oil boiler as a complete unit. It can heat bitumen and also can provide high temperature heat thermal oil.

Cylinder shape asphalt heating tank main components

Mainly include tank body(including insulation layer), diesel burner, built-in combustion chamber (including thermal oil jacket layer), multirow flue and thermal oil coils, asphalt pump, thermal oil circulation pump, thermal oil expansion tank, asphalt temperature control system, thermal oil temperature control system, liquid level meter, pipeline and asphalt pump heat tracing system, asphalt entrance and exit, climbing ladder, switch box and discharge manger.

Working principle

The device has a built-in combustion chamber with a thermal oil jacket layer, and the multirow of flue and the thermal oil coil. The thermal oil is heated by the flame in the jacket layer, then the hot thermal oil is pumped and passed through the coil to heat the asphalt, meanwhile, the hot exhaust also heat the asphalt through the multirow flue, so the two methods including the high temperature flue and the hot thermal oil coil heat the asphalt at the same time.

Features

1, The shape of the equipment is a horizontal cylinder tank with a complete base.

2, The equipment uses cleaner diesel oil as fuel and the burner brand is Baltur imported from Italy. It has the stable performance, full combustion, high thermal efficiency and no pollution. It can automatically control the heating temperature of bitumen (setting the upper and lower limits of the required temperature for the bitumen and thermal oil, the burner will be automatic shutdown when the temperature reach the upper limit, automatic start when reach the lower limit), without manual supervision.

3, The device has a built-in combustion chamber with a thermal oil jacket layer, and the multirow of flue and the thermal oil coil. The thermal oil is heated by the flame in the jacket layer, then the hot thermal oil is pumped and passed through the coil to heat the asphalt, meanwhile, the hot exhaust also heat the asphalt through the multirow flue, so the two methods including the high temperature flue and the hot thermal oil coil heat the asphalt at the same time.

4, This heating method reuses the high temperature flue gas wasted by the traditional thermal oil asphalt heating device, also avoids the disadvantage of aging asphalt easily caused by direct heating in the combustion chamber from the old direct heating equipment, and makes the asphalt heating faster, more uniform, higher output, higher heat utilization rate, more energy-saving and environmental protection.

5, The equipment has the function of supplying hot thermal oil to the outside at the same time when heat asphalt in the tank, which can perfectly solve the heat tracing problem of the asphalt pipeline system.

6, Equipped with asphalt pump and pneumatic three-way valve, the pneumatic three-way valve can automatically switch the direction of asphalt supply according to the signal received from the metering box on the asphalt mixing plant (pump asphalt into the metering box of asphalt mixing plant or return to the tank for circulation).

7, The tank body is fully insulated, and the temperature drop is not more than 10% of the atmosphere difference within 24 hours.

Our advantages

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, mainly including asphalt melting equipment for drum/box/bag packing, asphalt tank, asphalt emulsion equipment and asphalt sprayer, also we have the big advantages as below,

1. Independent design and professional manufacturer.

2. Production capacity over 200 sets per year.

3. All equipments with compact structure, suitable for container load.

4. Select premium steel with high quality.

5. Complete production control with detailed record and video.

6. Our factory had passed ISO system authentication, including ISO9001, ISO 14001, OHSAS18001.

7. We manufacture our standard equipment, also welcome OEM and ODM.

Our service

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, you may get as below,

1. Design drawing as your requirement

2. Equipment solution as your real condition

3. Quality equipment as your order

4. Quick response as your time

5. Fast delivery as your demand

6. Complete warranty as your expect

Quality product, quick response and cost saving.

Delivery and shipping

1. Production time around 5-15 days per set

2. Suitable for 40 HQ container loading

3. Trade terms EXW, FOB, CFR, CIF

After sale service

1. Warranty one year

2. Online support service and video technical support

3. Free spare parts

4. Field installation, commissioning and training, field maintenance

Dezhou Feiteng Road Construction Equipment Co., Ltd., established in 2013, registered capital of 10 million RMB, located in Economic Development Zone of Wucheng County, Dezhou City, Shandong Province, covers an area of 3,670 square meters workshop, has becoming one the professional manufacturer which specializes in producing road construction equipment.

With convenient transportation access, it takes around 5 0 minutes from Dezhou East Railway Station with high speed train to our factory by car, our main product covers five series, such as Bitumen Melting Equipment, Bitumen Tank, Emulsion Bitumen Equipment, Modified Bitumen Plant and Bitumen spreader.

Over the years, our factory pay much attention for the quality control, also we commit to satisfy our customers through our design, testing, manufacturing and quality excellence, improving the production level step by step. With more than 1 0 years international trade experience staff, customers could get very quick action and professional response. As adhering to the core of customer needs, constantly innovating ideas and developing new products, while serving customers at heart, so far we have developed a long term stable trade cooperation with domestic and foreign customers.

In addition, our products have been exporting to clients all along. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking new road device for your application, we are willing to provide our proper solution for your projects.
